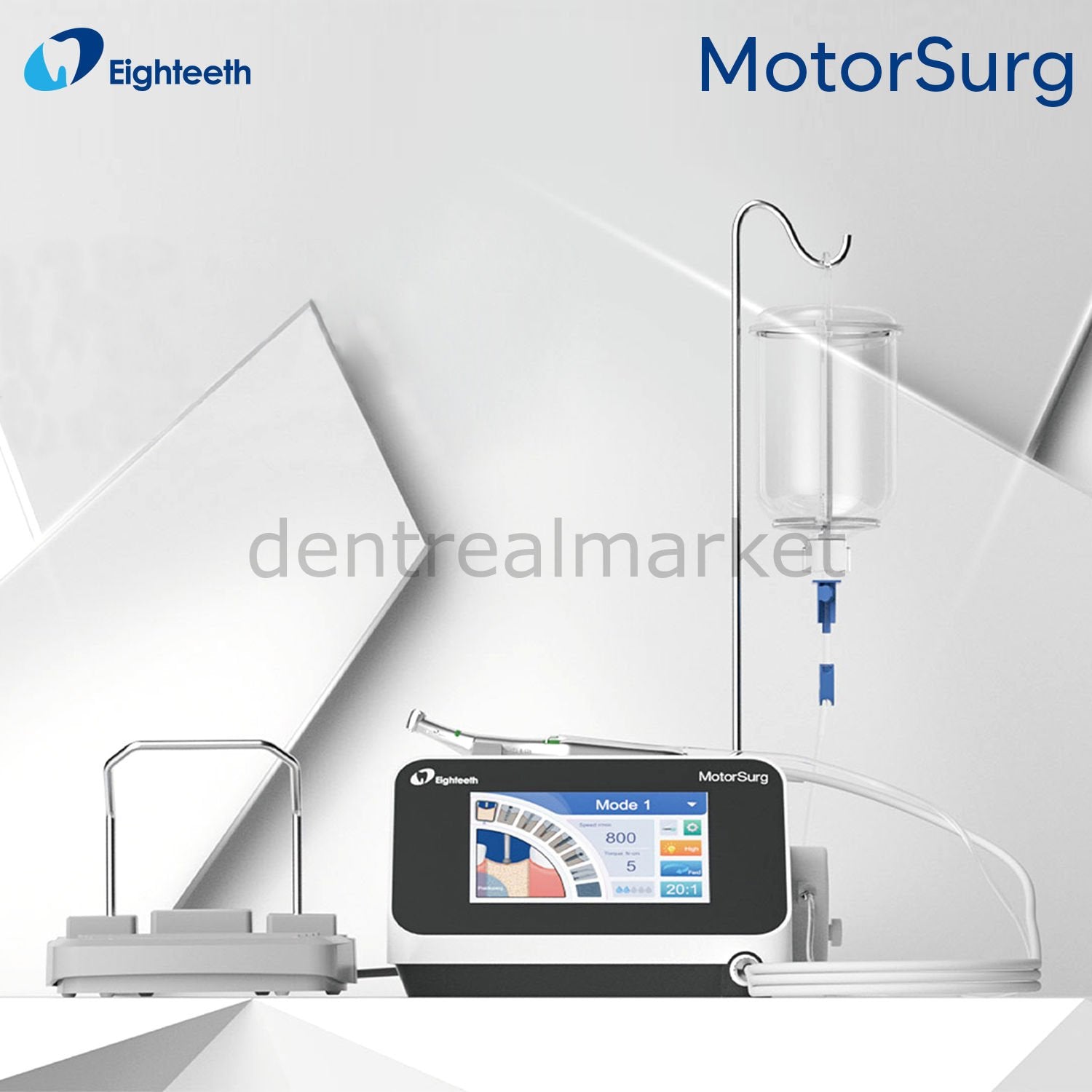

Eighteeth Motorsurg Illuminated Physiodispenser Implant Motor

MotorSurg illuminated physiodispenser — dental implant unit

Torque range 5–80 N·cm and speed 200–40,000 rpm for high performance.

Powerful and precise / safe and stable

• German bearings and powerful motor
• Stable under high torque; ultra-low speed option available
• Surgical parameters pre-settable to prevent wrong operations
• Smart error notification guiding users to resolve common issues during surgery
• Visualization of surgical procedures to guide users and increase success rate

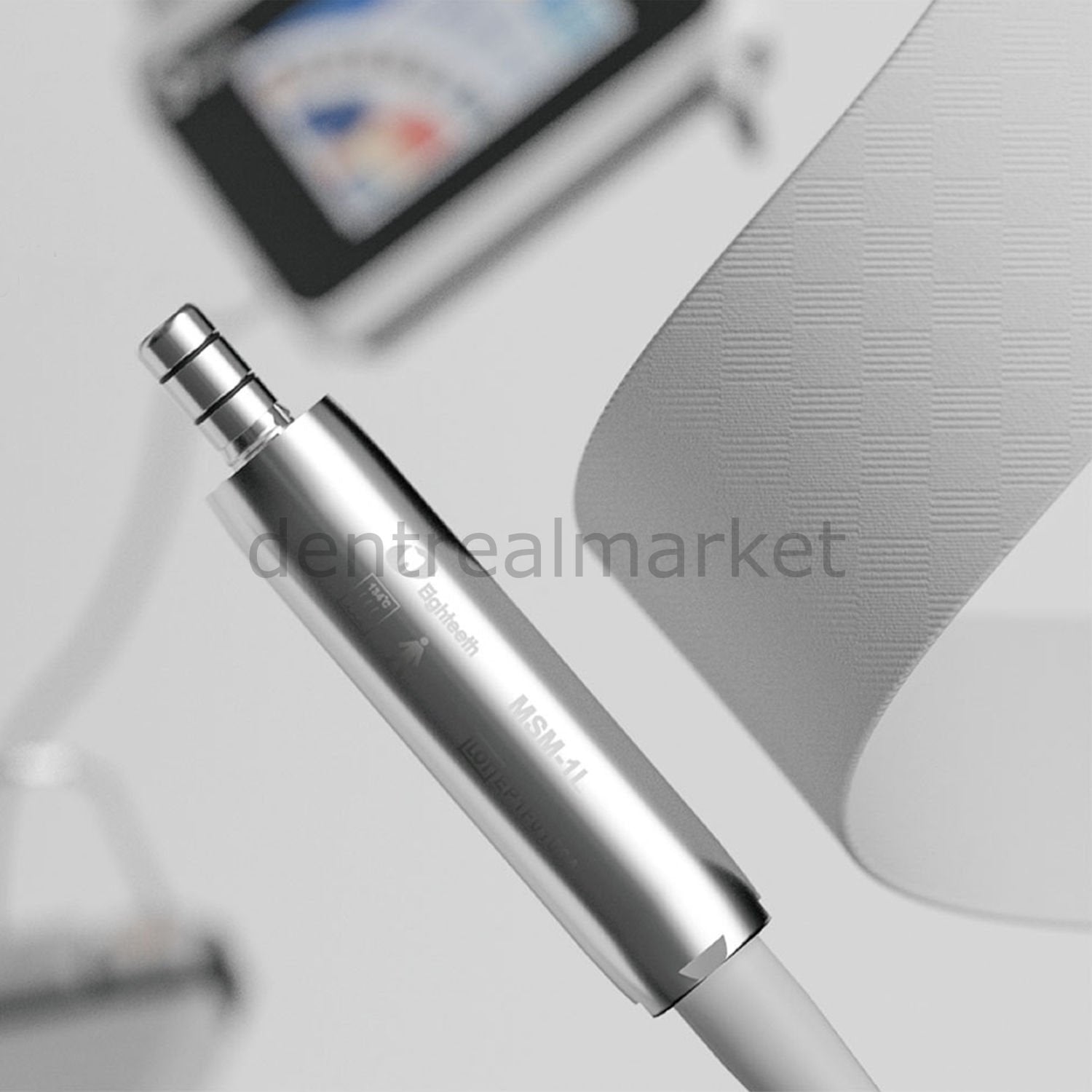

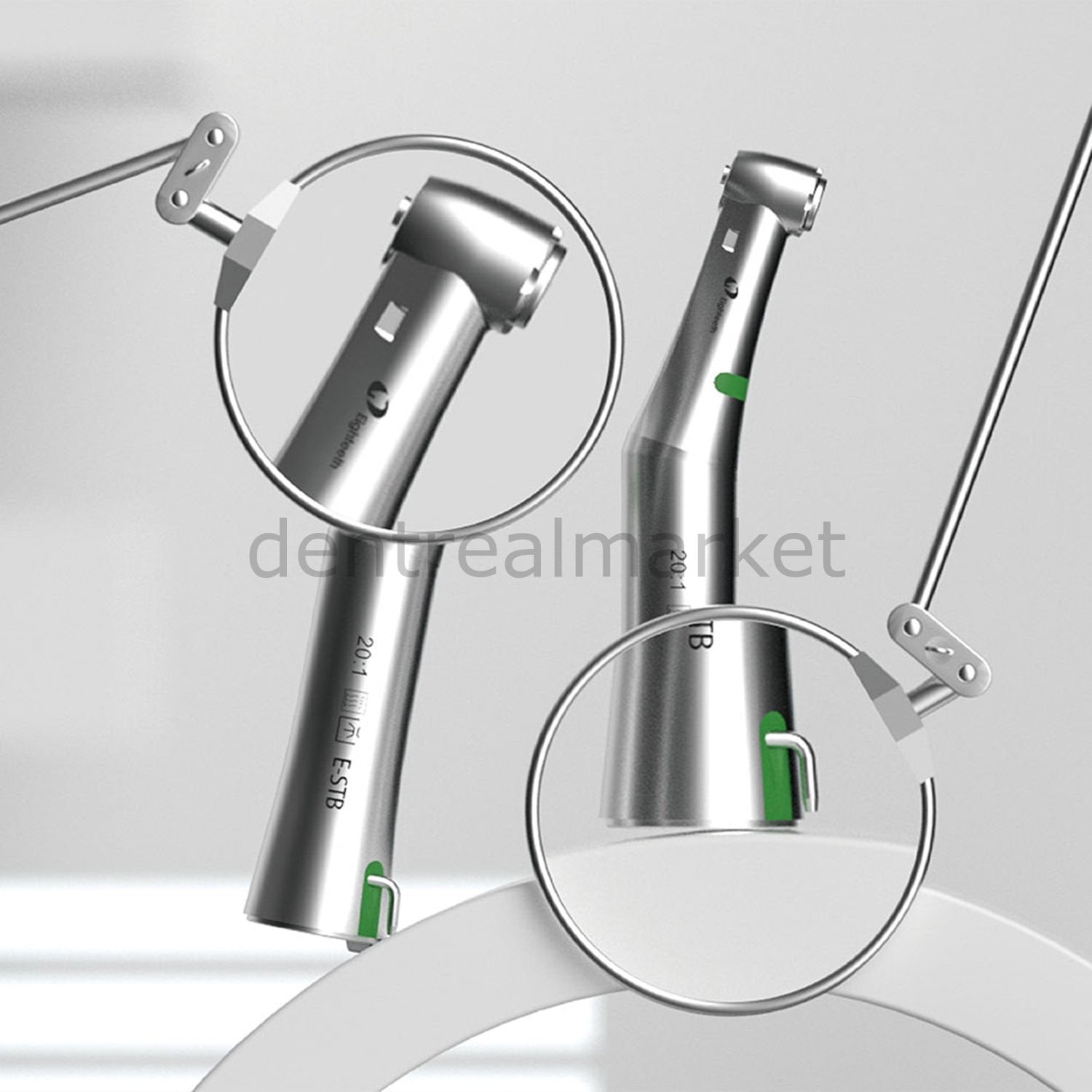

Powerful contra-angle handpiece

• Adjustable brightness for clearer, more precise surgery
• Water inlet at the bottom — prevents scratches during disassembly
• No water tube in front of the contra-angle — less space in the mouth, more patient comfort
• Ergonomic design — balanced, comfortable grip without fatigue
• Removable and durable

User-friendly

• LED colour touchscreen — simple, intuitive, precise and easy to use
• 8 modes for fast surgical switching; dentists can set parameters and customize modes
• Data recording — data downloadable via USB memory

Multifunction foot pedal / silent water pump

• Smart, user-friendly and aseptic operation
• More precise — operable with only 2 mm depression vs other brands
• Maximum water volume up to 130 ml/min; adjustable water volume; simple connection

Technical specifications

• Speed (rpm): 200–40,000
• Torque (N·cm): 5–80
• Max. pump output (ml/min): 130
• Programs: 8
• Display: LED colour touch
• One-touch calibration: yes
• Light: white LED
• Illumination (lux): above 32,000
• Motor cable length (m): 2
• Volume (cm): 24 × 26.5 × 15
• Weight (kg): 3.65
• Power supply: 220–240 V & 100–120 V 50/60 Hz
