Huaer Portable Mobile Dental Unit and Chair

Product overview

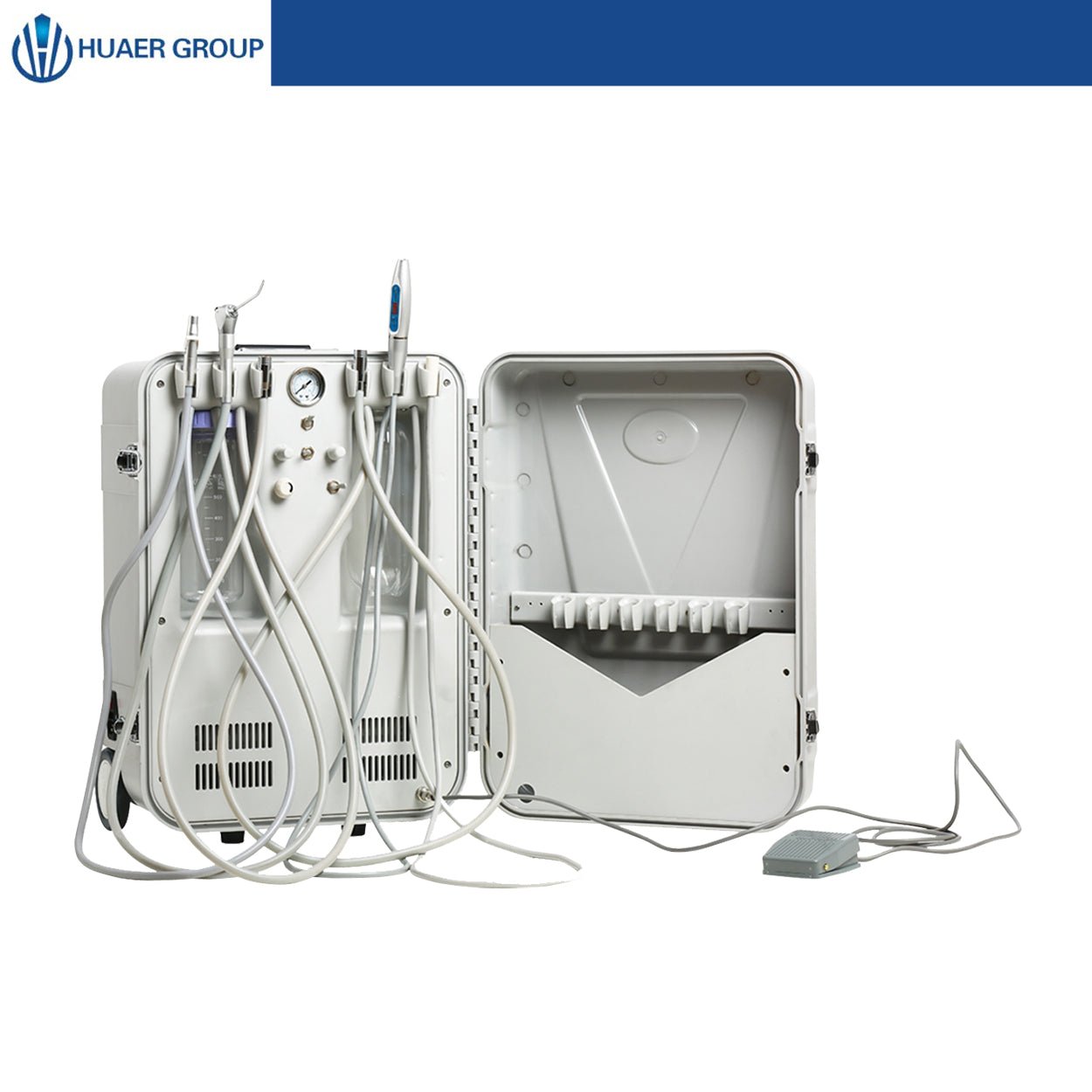

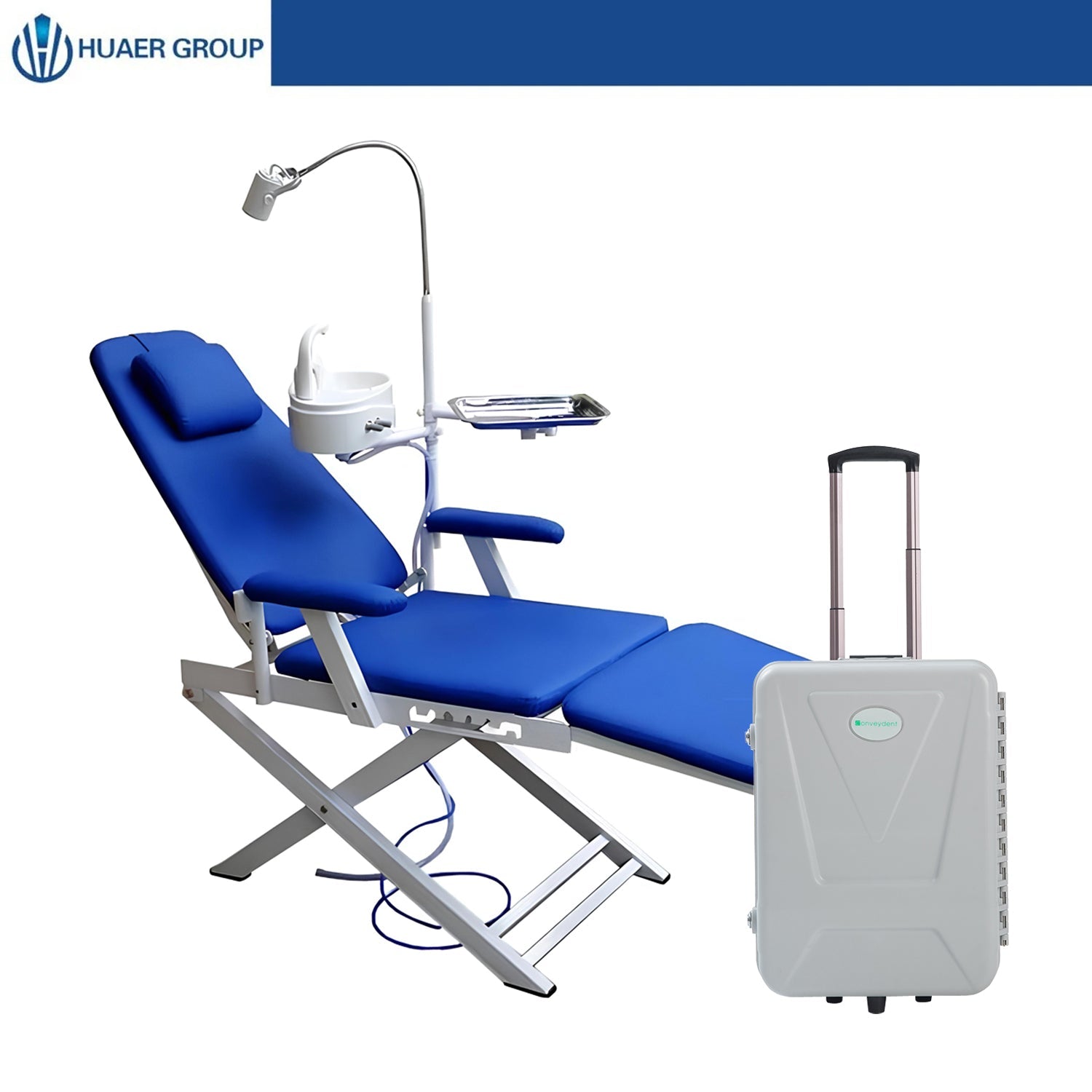

DP15 portable dental unit with portable chair — a self-contained air dental system designed for mobility and easy field use.

Unit features

• Reinforced outer case for durability in portable / field environments
• Impact-resistant molded ABS case to help prevent shipping damage
• Built-in vacuum generator
• Clean air flow for handpiece and vacuum so both can run together with strong suction
• Multi-function foot pedal; Woodpecker lighted scaler / Woodpecker LED device

Included components

• 1× 2-hole high-speed handpiece tubing
• 1× 2-hole low-speed handpiece tubing
• 1× 3-way syringe
• 1× high-volume evacuation
• 1× built-in 550 W quiet oil-free air compressor
• 1× stainless-steel 6 L air tank
• 1 L water reservoir
• 1× waste reservoir
• 1× multi-function foot pedal

Technical data (unit)

• Power: 220 V/50 Hz or 110 V/60 Hz; 550 W
• Air flow: 130 L/min
• Max pressure: 0.8 MPa
• Noise: ~40 dB

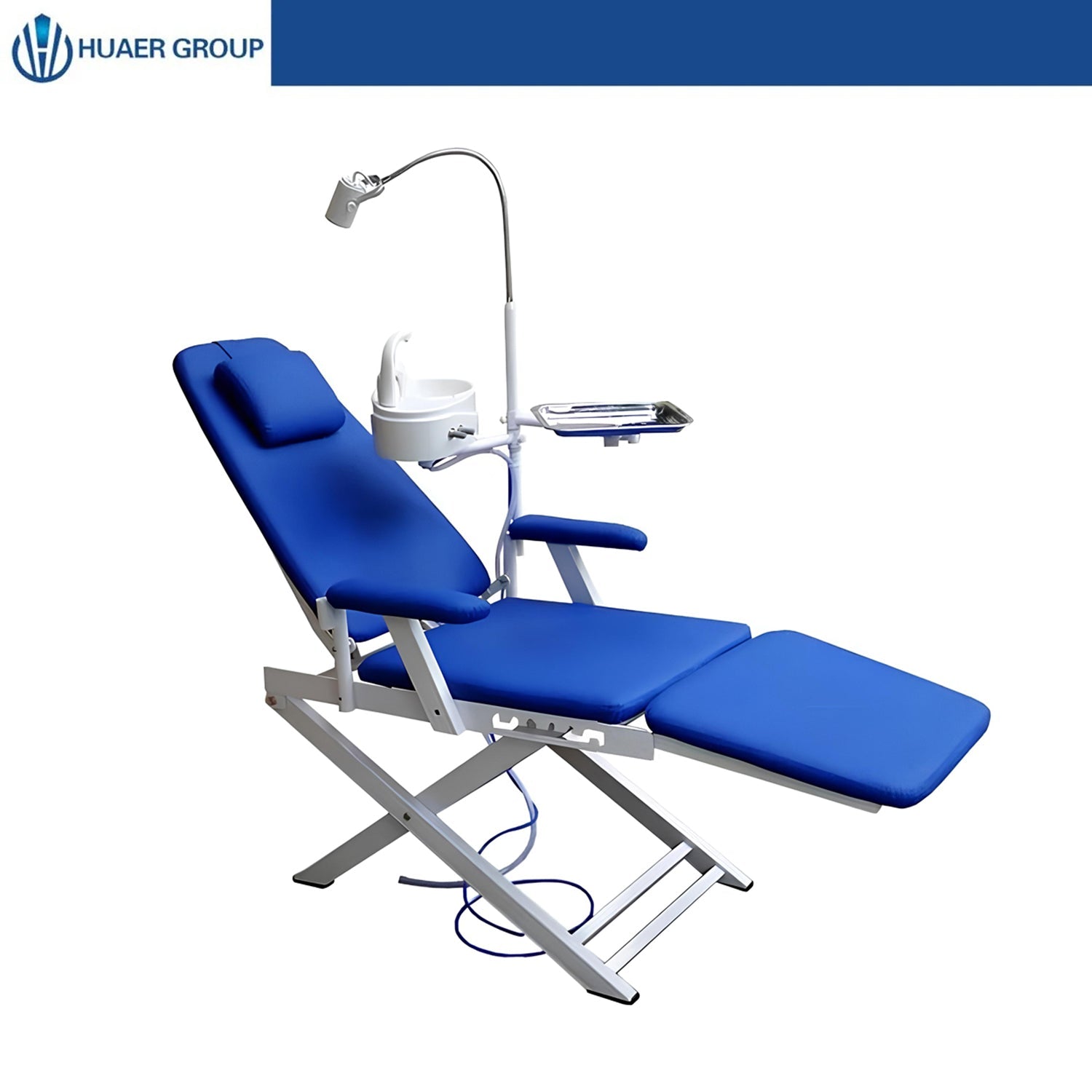

Portable dental chair & light

Folding portable dental chair with LED operating light (replacing earlier halogen), improved ergonomics, instrument tray, and waste receptacle. Assembles without screws/screwdriver for easier, sturdier setup. Suitable for dental treatment, transfusion, rest, and similar use.

• Seat height from floor: 240–640 mm
• Backrest angle: 100°–175°
• Load capacity: per YY/T0058 for dental patients (135 kg)
• Lighting: LED projection, AC-DC rechargeable
• Power: 110–240 VAC, 50–60 Hz
• Runtime after charge: ~18 h (weak) or ~9 h (strong)

Chair package contents

• 1× operating light
• 1× instrument tray
• 1× front/rear seat feet and cushion frame
• 1× headrest
• 1× 6" reversible screwdriver
• 1× 17/14 mm hex key
• 1× left/right armrest set
• 1× English user manual
