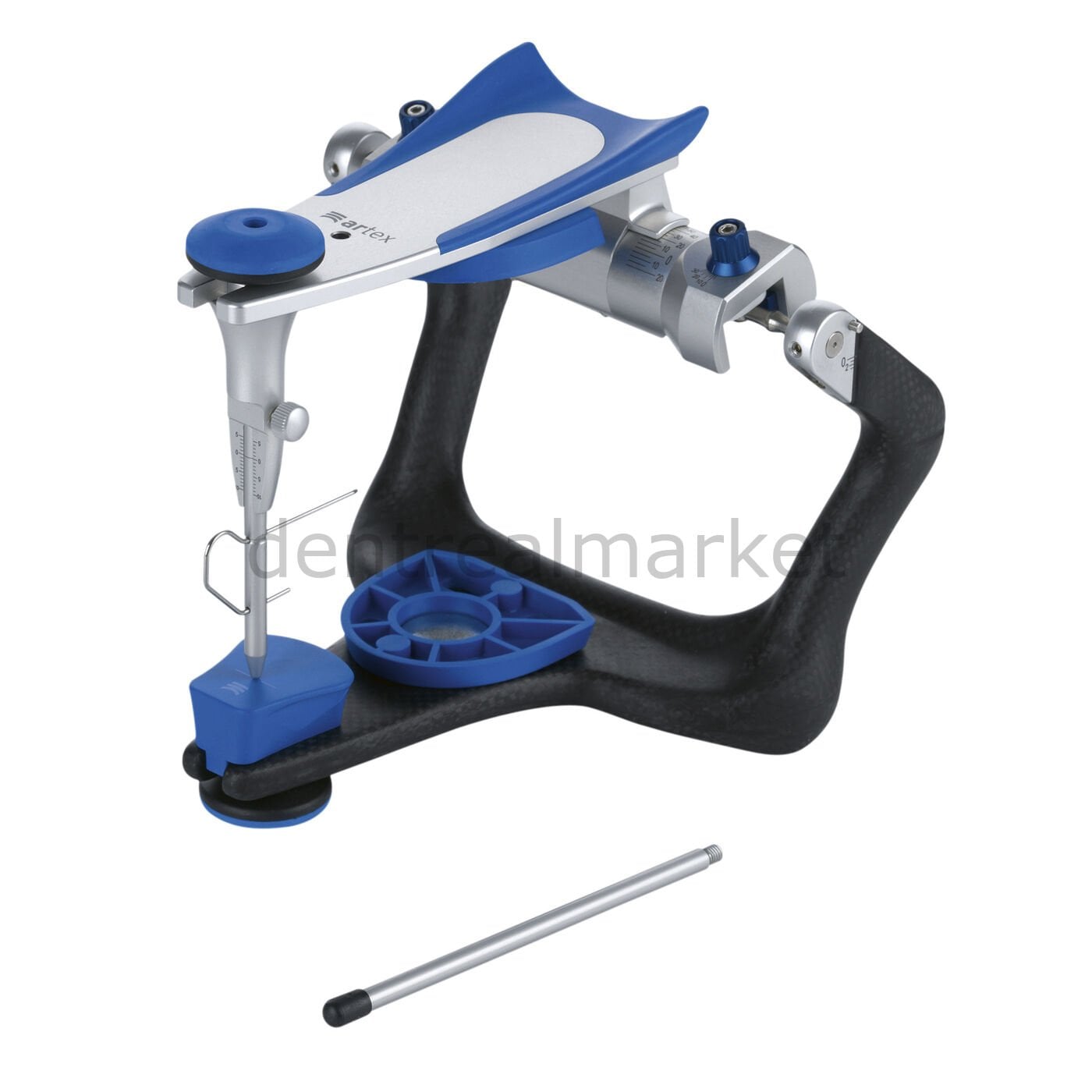

Amanngirrbach Artex Carbon CPR Articulator

Amann Girrbach Artex Carbon CPR articulator

Advanced joint parameters: Retrusion (0–2 mm): simulation of mandibular backward movement.

Semi-adjustable professional Arcon system

Amann Girrbach Artex Carbon CPR is an upper-segment Arcon articulator designed for dentists and technicians seeking the highest anatomical accuracy in mastication simulation. Combining the lightness of carbon fiber with the precision of stainless steel, the CPR model offers unique advantages especially in functional analysis and complex TMJ cases.

Key features and advantages

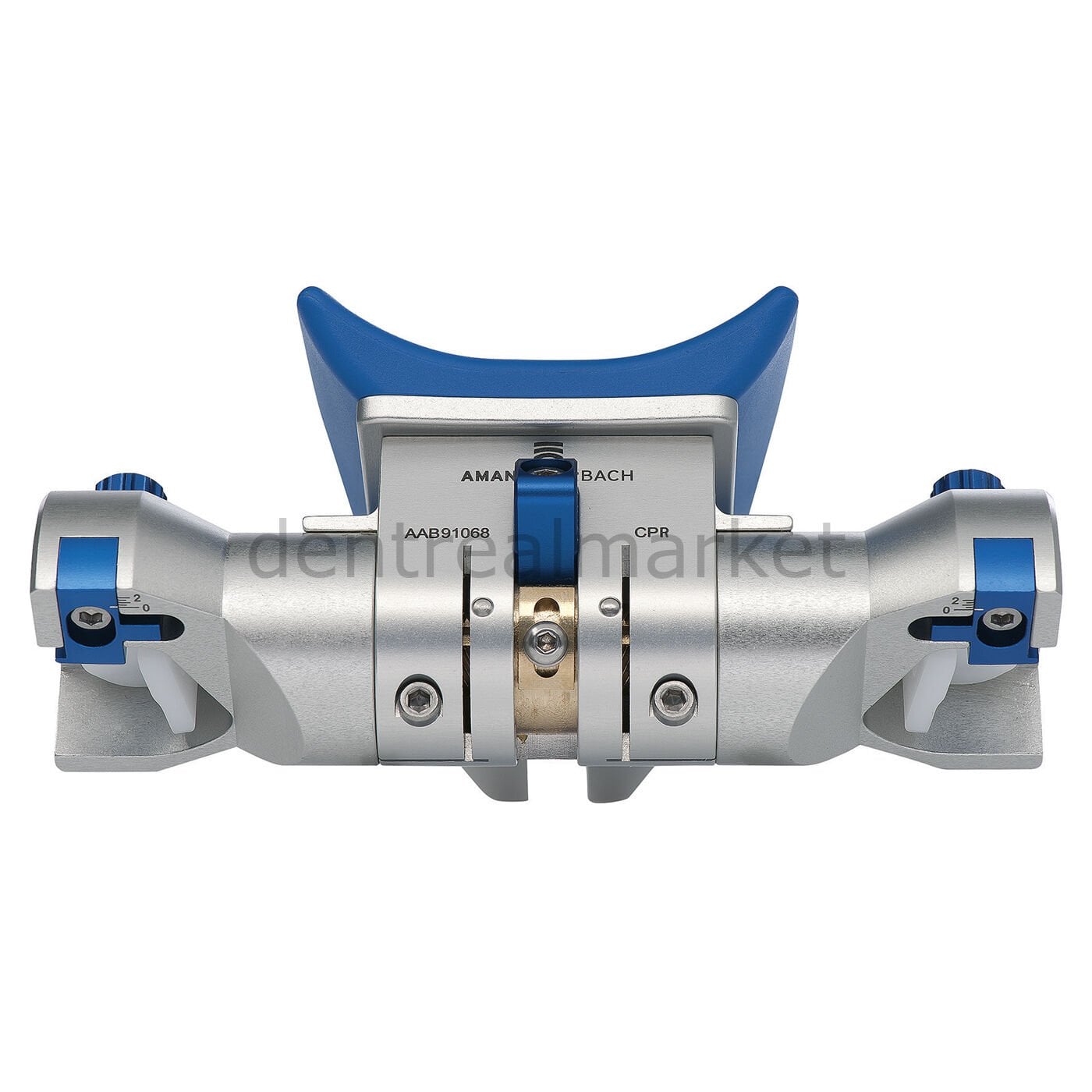

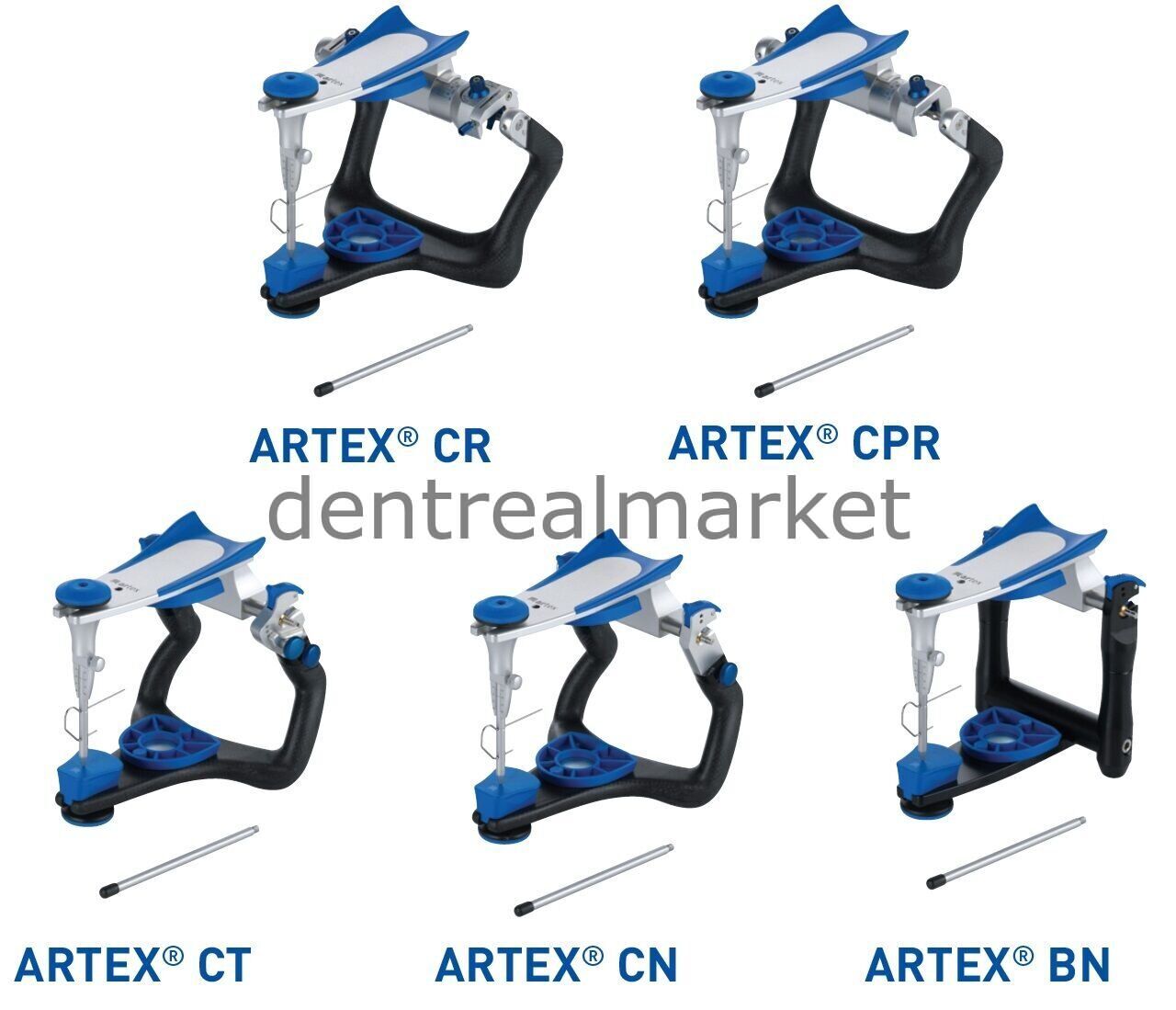

• Realistic Arcon design: Unlike other Artex models, CPR has an Arcon (Anatomical Condyle) structure — the fossa is in the upper member and the condyle sphere in the lower member. This mimics intraoral anatomy and minimizes error especially in prosthetic work
• Arcon Clip system: Special clip mechanism that prevents upper and lower members from separating when centric lock is open, for safe and comfortable work
• Distraction (0–3 mm): Adjustment for opening the joint space (critical for TMJ cases)
• Maximum adjustment range: Sagittal condylar inclination from −20° to +60° and Bennett angle from −5° to +30° — among the widest ranges of semi-adjustable devices on the market
• Splitex® synchronization: Integrated magnetic plate system allows models to be transferred between different laboratories or articulators without calibration loss
• Light and stable structure: High-stability carbon body resists wear in long-term use and minimizes total device weight

Technical specifications

• Structure: Arcon system (mechanically guided semi-axes)
• Height: 126 mm (standard Artex height)
• Bonwill triangle: 110 mm
• Sagittal condylar inclination: −20° to +60° (adjustable)
• Bennett angle: −5° to +30° (adjustable)
• Retrusion: 0–2 mm
• Distraction: 0–3 mm
• Incisal guidance: −5 mm to +10 mm
• Facebow compatibility: Fully suitable for facebow adaptation with “arbitrary pins”

Delivery contents

• 1 × Artex Carbon CPR articulator
• 1 × Incisal needle and incisal pin
• 1 × Incisal guidance table (0°)
• 1 × Support pin
• 2 × Magnetic model plates (including retaining discs)
