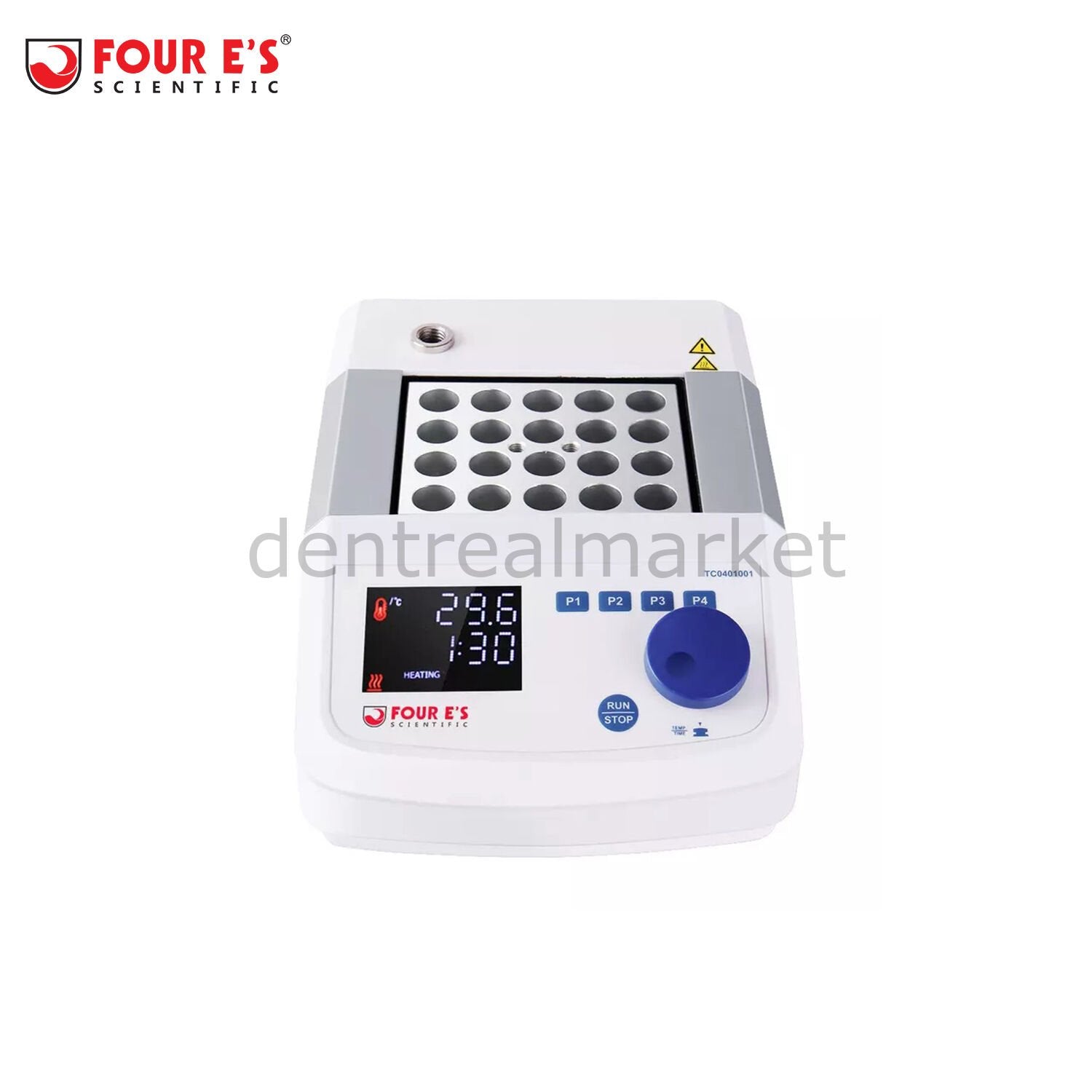

Four E's Scientific TC0401001 Dry Block Incubator - Single Block

Four E’s Scientific TC0401001 dry block incubator — single block

Designed for superior temperature control and high accuracy in laboratory applications. 3D digital wheel control for precise time and temperature settings. Supplied with an external PT1000 temperature sensor in addition to the built-in sensor; when PT1000 is connected, the internal sensor is disabled and control/display use the external sensor. Interchangeable aluminium-alloy blocks for versatile use.

Areas of use

• Sample preparation
• Enzyme protection
• Enzyme–substrate reactions
• DNA amplification
• Electrophoresis gel denaturation
• Serum coagulation

Key features

• Easy-to-read LED display
• 3D digital wheel for time and temperature
• Adjustable temperature up to 150°C
• High temperature stability up to ±0.2°C
• Machined aluminium heating unit for precise control

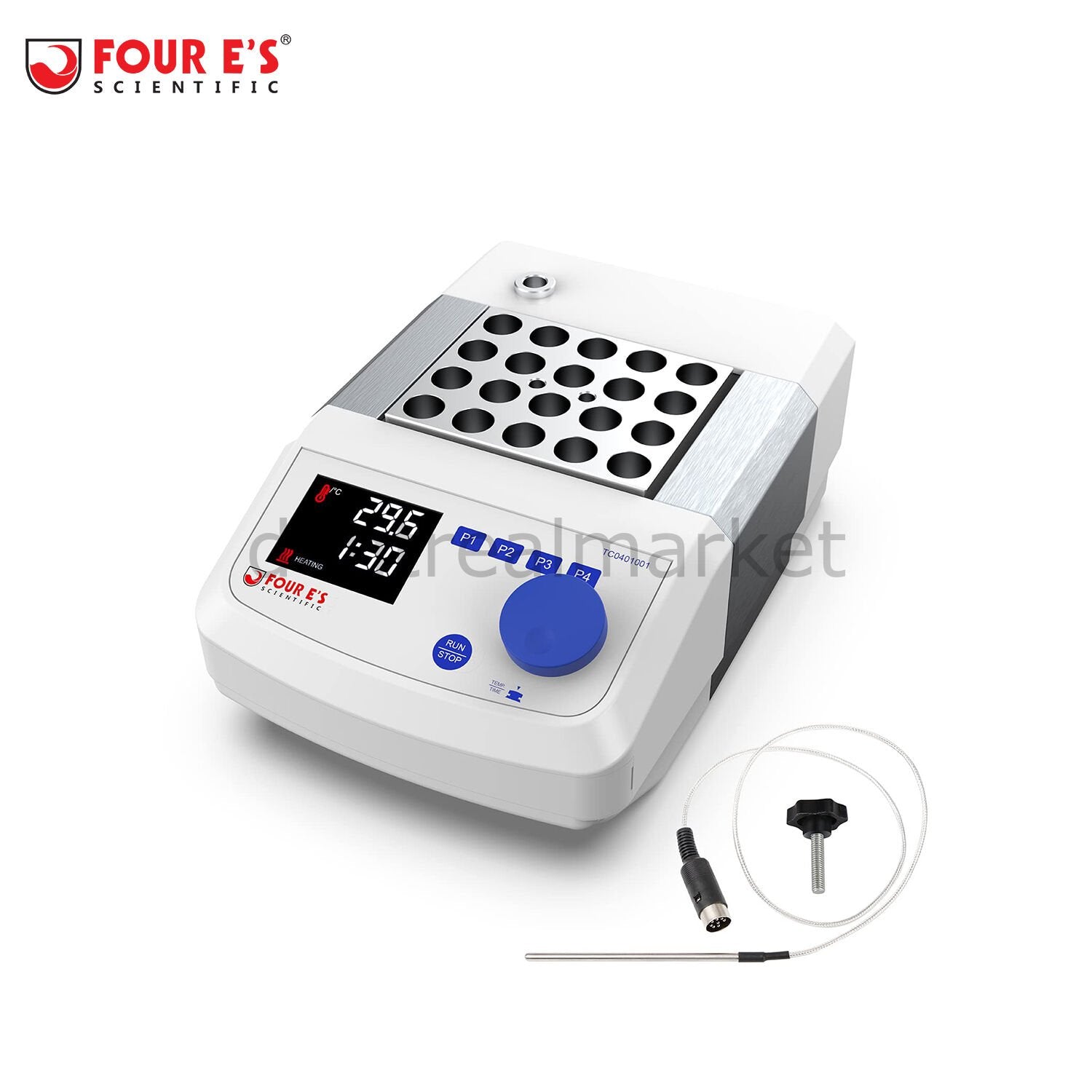

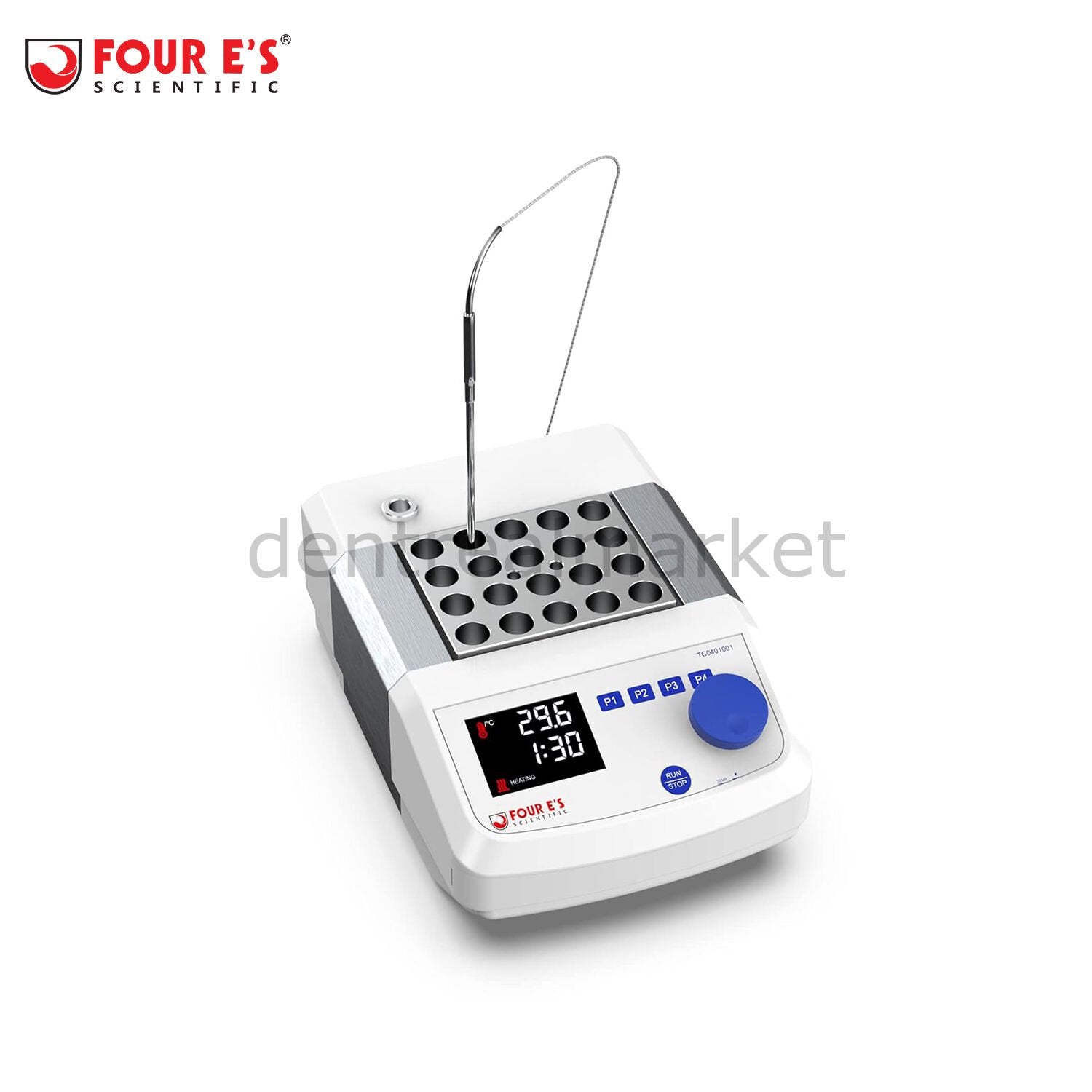

• PT1000 sensor for direct in-sample measurement
• Timer adjustable from 1 minute to 99 h 59 min
• Fixed safety circuit and error-code display
• Automatic calibration with external PT1000 sensor

Technical specifications

• Model: TC0401001
• Number of blocks: 1
• Heat output: 165 W
• Heating temperature range: ambient +5°C ~ 150°C
• Set and display resolution: 0.1 K
• Internal temperature sensor connection: DIN 12 878
• PT1000 sensor standard: DIN EN 60751 Class A
• Temperature stability (in block): < 60°C: ±0.2°C; 60°C: ±0.2°C
• Temperature uniformity: < 60°C: 0.2 K; 60°C: 0.2 K
• Heating rate (external sensor): 5 K/min
• Mounting plate: aluminium alloy, 96 × 76 mm
• Fixed safety circuit: 180°C
• Time setting range: 1 min – 99 h 59 min
• Dimensions (W × H × D): 152 × 86 × 190 mm
• Weight: 1.5 kg
• Ambient temperature: 5 – 40°C
• Relative humidity: 80%
• Protection class: IP21 (DIN EN 60529)
• Voltage: 200–240 V / 115 V
• Frequency: 50 / 60 Hz
• Power input: 165 W

System contents

• Four E’s Scientific TC0401001 dry block incubator (single block)
• Power cable
• User manual
