Nsk Endo-Mate DT Endomotor

ENDO-MATE DT Endomotor

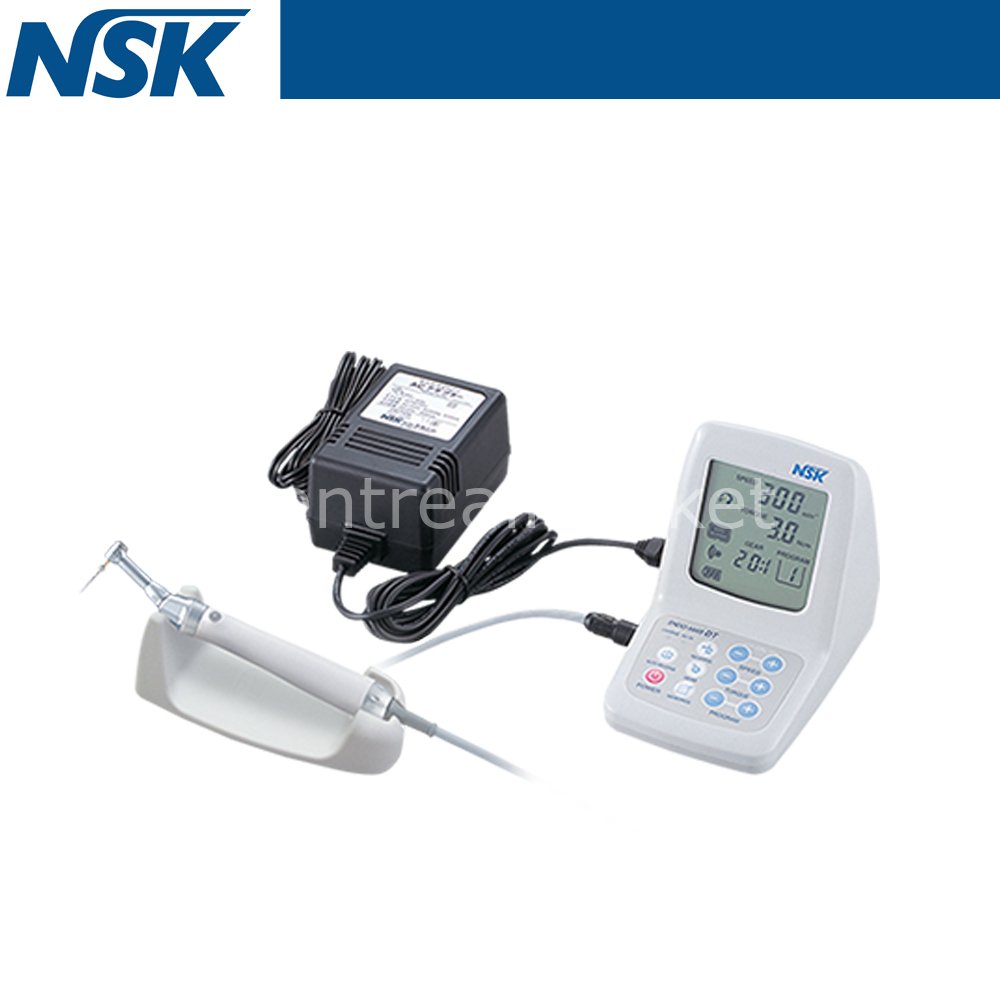

ENDO-MATE DT with 20:1 head. Model ENDO-MATE DT (120 V) order code Y141120; Model ENDO-MATE DT (230 V) order code Y141121. Without head: ENDO-MATE DT W/O (120 V) Y141123; (230 V) Y141124.

Contents

• ENDO-MATE DT: control unit / motor and cord / MP-F20R head (20:1) / handpiece stand / AC adaptor
• ENDO-MATE DT W/O: control unit / motor and cord / handpiece stand / AC adaptor

Specifications

• Power supply: AC 120 V 60 Hz or 230 V 50/60 Hz and battery pack
• Number of programs: 9
• Max torque: 7 Ncm (with 20:1 head)
• Speed range: 100–13,000 min⁻¹ (with 20:1, 4:1, 1:1 geared heads)
• Charge / continuous use: 5 h / 2 h (depending on workload)
• Dimensions: W 92 × D 148 × H 124 mm
• Weight: unit 456 g; motor handpiece & cord 92 g

Features

• Push-button miniature head
• Compatible with all well-known Ni-Ti files on the market
• On/off switch on the head (optional pedal)
• 9 adjustable program options
• With 16:1 speed-reducing contra-angle: work at desired speed in the 140–550 rpm range
• Light, compact, portable control unit
• Dual power — mains or rechargeable battery
• Microprocessor-controlled, light, high-performance micromotor
• Large, easy-to-read LCD
• 6 adjustable head angles for fatigue-free work
• Torque control from 0.1 to 6.5 Ncm according to selected head gear ratio
• Automatic reverse and automatic shut-off
• Apex-locator compatible and non-compatible head options: NSK MP-F16R 16:1; NSK MPA-F16R 16:1 (apex compatible)
• Easy head-change mechanism; up to approx. 2 hours on battery
