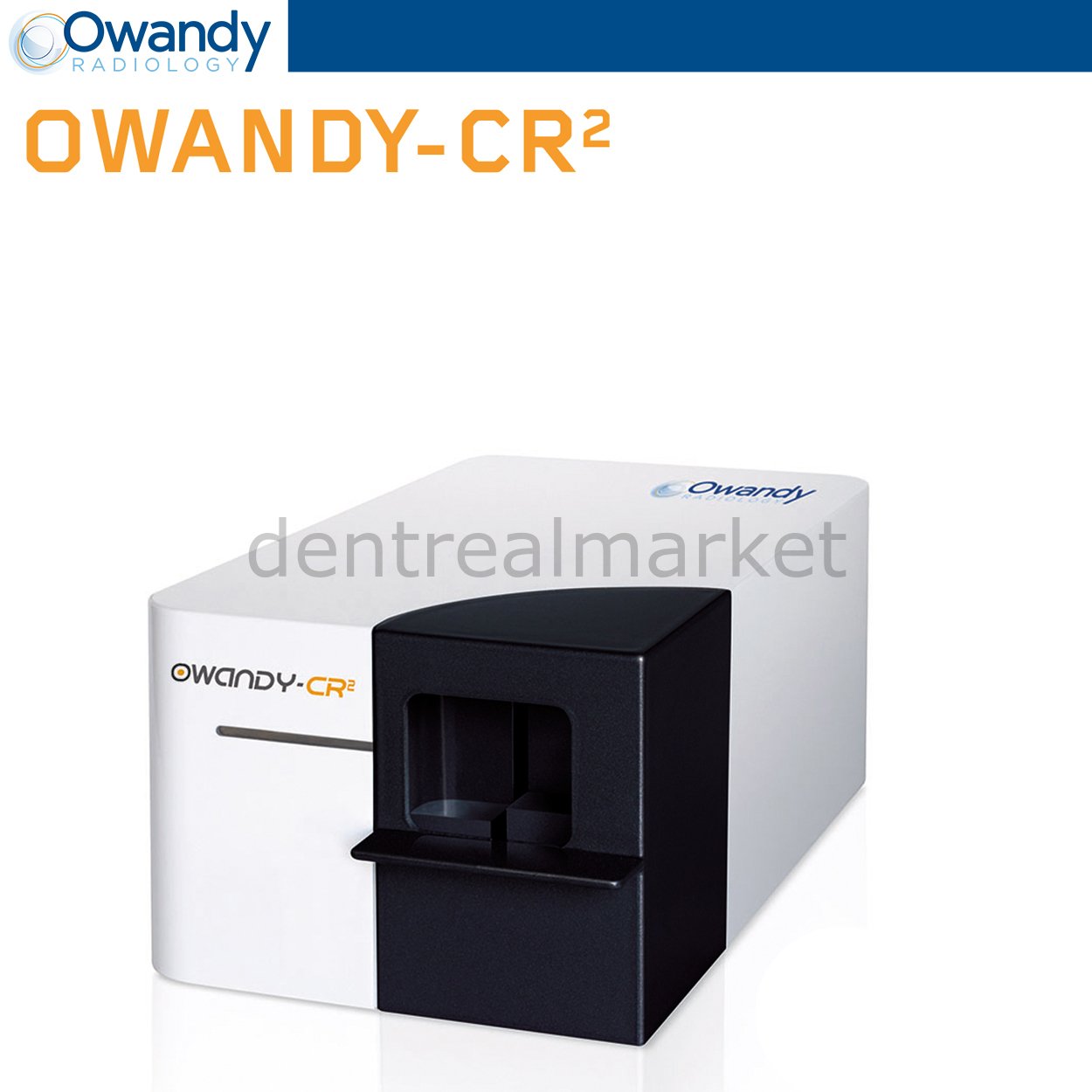

Owandy CR2 Phosphor Plate Scanner

Owandy CR2 Phosphor Plate Scanner

Sleek, elegant, and compact, Owandy-CR² is among the smallest systems on the market. Its design brings a contemporary, high-tech look to the treatment room.

Optimized sensitivity: Owandy-CR² produces accurate images at low doses without the risk of overexposure.

100% automatic: plate detection, sizes and insertion orientation, reading, and erasure are automatic — no complex user interface.

• Automatic wake and standby mode.
• Four plate sizes to suit every scan requirement.
• Suitable for endodontics, prosthodontics, implant surgery, periodontics, and caries diagnosis.
• Easier data sharing.

Product features

Developed for single- or multi-user use.

Technical specifications

• Certification / class: MDD 93/42 – Annex IX Rule 16: Class IIa
• Pixel size: 30 µm
• A/D conversion: 16-bit input
• Power supply: 24 V ± 10%
• Current draw: 1 A
• Power consumption: 60 W
• Unit weight: 4.25 kg
• Dimensions (H × D × W): 104 × 286 × 151 mm
• Plate outer sizes: Size 0 22×31 mm; Size 1 24×40 mm; Size 2 31×41 mm; Size 3 27×54 mm
• Phosphor composition: BaSrFBr:Eu
• Luminescence: 400 nm
• Reading: within 1 hour after exposure
• OS: Windows 7, 8, 10 (32/64-bit)

Package contents

• 1 Owandy-CR² unit
• 2 size 0 plates + 10 paper protectors and 50 disposable hygienic sleeves size 0
• 2 size 2 plates + 10 paper protectors and 50 disposable hygienic sleeves size 2
• 1 USB 2.0 or RJ45 cable
• 1 power supply cable
• 1 installation CD-ROM (drivers, diagnostics, QuickVision software)
• 1 user / installation manual
• 1 CE Declaration of Conformity
